SHO 5610

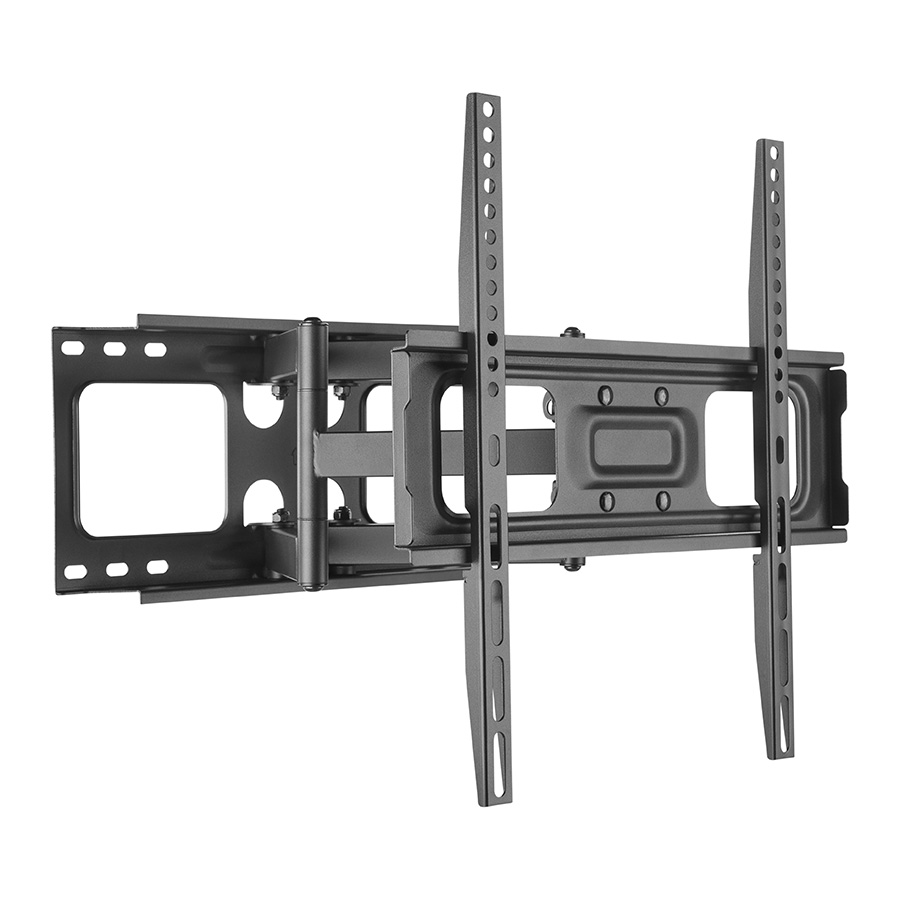

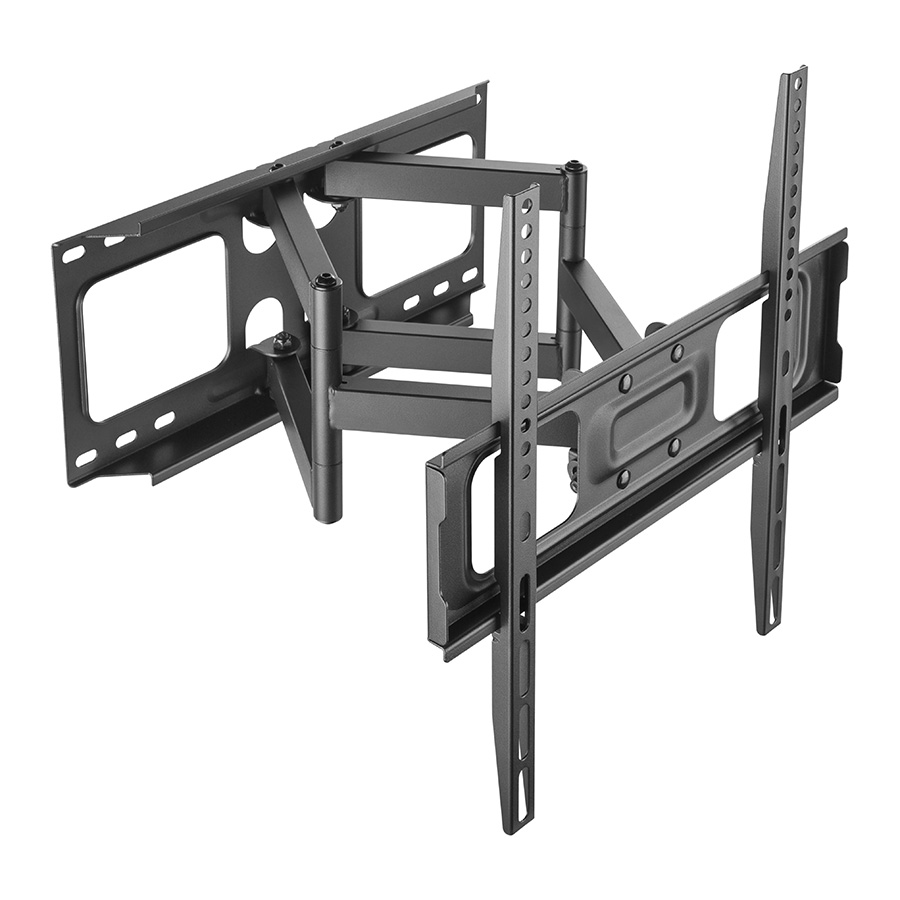

Extensible adjustable mount for TV

SHO 5610
Product image
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO5610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
Instructional video
45 kg
32 " - 70 "
For television
Load capacity 45 kg
Min. screen diagonal 32 "
Max. screen diagonal 70 "

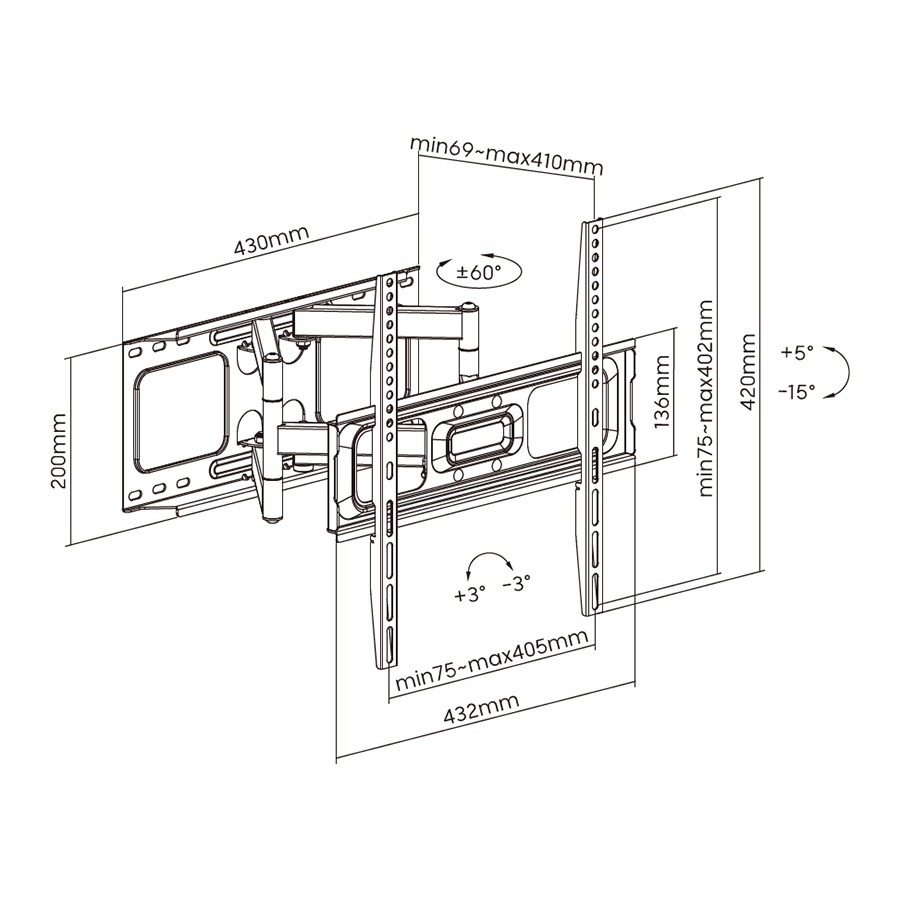

Function and installation
Tilt downwards 15
Swivel +/- 60°
Level correction +/- 3°
Min. distance from wall 6,9 cm
Max. distance from wall 41 cm
TV mount pad dimensions
Minimum span 75 X 75 MM
Maximum span 405 X 402 MM
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
VESA 600x600
Other
Colour black
User's Manual Print quality image
